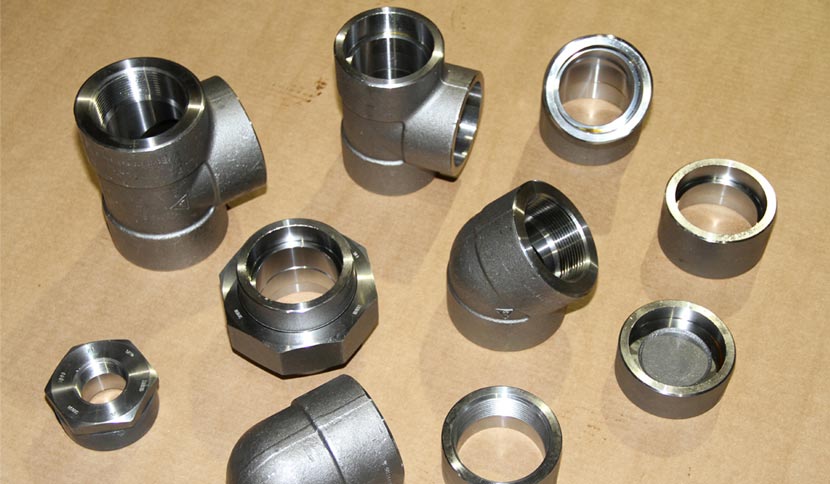

Inconel 625 Forged Fittings Synopsis

  • Sizes: 1/8″ – 4″ | Outlets: 1/2″ – 14″
  • Finish : Forged Black, Proof Machined
  • Melting Point : 1350°C
  • End : Threaded, Welding, JIC
  • Type : DN15 – DN1200







Inconel 625 Elbow

Inconel 625 Elbow

ASTM B564 Inconel 625 Tee

ASTM B564 Inconel 625 Tee

Alloy 625 Reducer

Alloy 625 Reducer



Table of Content



Inconel 625 Forged Fittings Specification

Inconel 625 Forged Fittings Specification

Find Inconel 625 Forged Fittings Stockist in India who provides 5D, 3D, etc… Bending Radius as per Standards

Standards
Standards of Alloy 625 Socket Weld Cross
  • ASTM B564
  • ASME SB564
Sizes
Inconel 625 Forged Fittings Sizes
  • Sizes: 1/8″ – 4″
  • Outlets Size: 1/2″ – 14″
  • Schedule : SCH 10 – SCH 160, XXS
Form
Form of ASTM B564 Alloy 625 Threaded Pipe Fittings
  • Elbow
  • Tee
  • Reducer
  • Cap
Process
DIN 2.4856 Socket Weld Cap Process
  • Welded
  • Seamless
  • Fabricated



Origin
Origin of Nickel Alloy 625 Forged Fittings
  • Janpanese
  • European
  • Korean
  • American
Finish
ASME SB564 N06625 Forged Coupling Finish
  • Polished
  • Pickled
Application
Application of ASTM B564 N06625 Socket Weld Union
  • Petroleum
  • Chemical industry
  • Shipbuilding
  • Construction
Testing
NCF 625 Threaded Tee Testing
  • PMI Test
  • NDT Test
  • HIC tested
  • Ultrasonic test



Features
Features of Ni 625 Forged Cross
  • Manufacturing process
  • High Strength
  • Corrosion resistance
  • Testing standards
Bending Radius
625 Inconel Alloy Forged Elbow Bending Radius
  • 5D
  • 2D
  • 3D
  • 1D



Benefits
Benefits of Inconel 625 Threaded Bushing
  • Oxidation Resistance
  • Weldability
  • Enhanced Durability
Packaging
ASME SB 564 Inconel 625 Sw Pipe Fittings Packaging
  • Bubble Wraps
  • Bundled
  • Wooden Box
Type Connection for ASTM B564 Nickel 625 Forged Pipe Fittings

Inconel 625 Forged Fittings Supplier in India, offers a wide Range of Threaded Connection

  • Male Union For Hexagon Male Plug
  • Female Cap x Female For 90-45 Degree Female Elbow
  • Male x Male Hexagonal Nipple
  • Female x Female x Female For Equal/ Reducing
  • Male Hexagon Plug
  • Female x Female Union

ASTM B564 N06625 Socket Weld Elbow Manufacturer in India, Refer Dimension

Dimensional Chart for Inconel 625 Forged Fittings

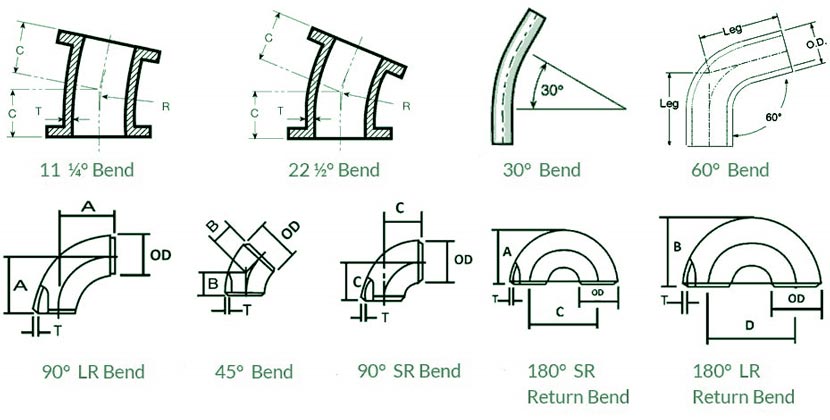

Dimensional Chart for Inconel 625 Forged Fittings

Nominal Pipe Sizes ANSI b16 9 Pipe Fitting O
D Y		 Wall Thickness T LR/SR 45 Deg Elbows LR 90 Deg Elbows SR 90 Deg Elbows
Weight Centre to Face B Weight In Below Centre to Face A Weight In Below Centre to Face A
Inch mm mm Schedule mm kg mm kg mm kg mm
1/2″ 15 21.3 STD 2.78 04 15.9 08 38.1 – –
X.S 3.73 05 15.9 0.10 38.1 – –
18″ 450 457 STD 9.52 56.5 286 113 686 75.6 457
X.S 12.7 75 286 150 686 100 457
3/4″ 20 26.7 STD 2.87 04 11.1 08 28.6 – –
X.S 3.91 05 11.1 0.11 28.6 – –
11/4″ 32 42.2 STD 3.56 0.14 25.4 0.28 47.6 0.18 31.75
X.S 4.85 0.2 25.4 0.39 47.6 0.24 31.75
2″ 50 60.3 STD 3.91 0.36 34.9 0.72 76.2 0.5 50.8
X.S 5.54 0.5 34.9 1 76.2 0.68 50.8
3″ 80 88.9 STD 5.49 1.1 50.8 2.18 114.3 1.45 76.2
X.S 7.62 1.45 50.8 2.86 114.3 1.95 76.2
5″ 125 141.3 STD 6.65 3.4 79.4 6.8 190 4.8 127
X.S 9.5 5 79.4 10 190 6.5 127
8″ 200 219.1 STD 8.18 10.2 127 20.4 305 13.6 203
X.S 12.7 15.5 127 30.9 305 20.9 203
12″ 300 323.9 STD 9.52 26.6 190 53.1 457 35.4 305
X.S 12.7 35 190 70 457 46.7 305
16″ 400 406.4 STD 9.52 45 254 89.3 610 59.5 406
X.S 12.7 59 254 118 610 78.7 406
20″ 500 508 STD 9.52 85 318 140 762 93.5 508
X.S 12.7 112.5 318 186 762 124 508
6″ 150 168.3 STD 7.11 5.1 95.2 10.1 229 6.8 152.4
X.S 10.97 7.7 95.2 15.3 229 10.2 152.4
1″ 25 33.4 STD 3.38 09 22.2 0.15 38.1 0.11 25.4
X.S 4.55 0.11 22.2 0.19 38.1 0.14 25.4
10″ 250 273.9 STD 9.27 18.1 159 36.1 381 24.1 254
X.S 12.7 24.4 159 48.8 381 32.5 254
14″ 350 355.6 STD 9.52 34.1 222 68.1 533 45.4 356
X.S 12.7 45 222 90 533 60 356
21/2″ 65 73 STD 5.16 0.73 44.4 1.46 95.2 0.95 63.5
X.S 71 0.91 44.4 1.82 95.2 1.27 63.5
4″ 100 114.3 STD 62 2.1 63.5 4.2 152.4 2.8 101.6
X.S 8.56 2.9 63.5 5.7 152.4 3.9 101.6
11/2″ 40 48.3 STD 3.68 0.2 28.6 0.4 57.1 0.26 38.1
X.S 58 0.25 28.6 0.5 57.1 0.35 38.1
24″ 600 610 STD 9.52 101.5 381 203 914 135 610
X.S 12.7 134.5 381 269 914 179 610

Supplier of Alloy 625 Threaded Tee and Reducer With 2000 to 9000 LBS Pressure Class For Petrochemical Industry

In Which Sectors ASTM B564 Inconel 625 Forged Fittings Are Mainly Used ?

In Which Sectors ASTM B564 Inconel 625 Forged Fittings Are Mainly Used

Inconel UNS N06625 Threaded Tee Pressure Rating

Inconel 625 Forged Fittings Manufacturer in India, Which Provides Fittings with Exceptional Pressure Rating Properties

Temperature Class
150 300
1/4″ – 1″ 1 1/4″ – 2″ 2 1/2″ – 3″
Celsius (°C) Fahrenheit (°F)
-29 to 66 -20 to 150 300 2000 1500 1000
93 200 265 1785 1350 910
204 400 – 935 750 560
260 500 – 510 450 385
149 300 185 1360 1050 735
121 250 225 1575 1200 825
177 350 150 1150 900 650
232 450 – 725 600 475
288 550 – 300 300 300

Buy Werkstoff nr 2.4856 Forged Coupling With NPT, BSPT, BSP Threads at Reasonable Price in Mumbai

Which Are The Threads Types for ASTM B564 UNS N06625 Forged Fittings ?

Which Are The Threads Types for ASTM B564 UNS N06625 Forged Fittings

Sizes for 625 Inconel Socket Weld Bushing

Find Inconel 625 Forged Fittings Manufacturer in India offering Custom Sizes

Nominal Pipe Size’s (Inches) Sch Outside Diameter (O.D.) (Inch) Wall Thickness (in) Temperature
300 Fitting 200 Fitting 100 Fitting 500 Fitting 400 Fitting
Allowable Stress
16700 16700 16700 14400 15500
1″ 40 1.315 0.133 2205 2205 2205 1902 2047
80 1.315 0.179 3061 3061 3061 2640 2841
160 1.315 0.250 4493 4493 4493 3874 4170
6″ 40 6.625 0.280 877 877 877 756 814
80 6.625 0.432 1379 1379 1379 1189 1280
160 6.625 0.719 2382 2382 2382 2054 2211
1 1/2″ 40 1.900 0.145 1629 1629 1629 1404 1512
80 1.900 0.200 2303 2303 2303 1986 2138
160 1.900 0.281 3362 3362 3362 2899 3120
3″ 40 3.500 0.216 1301 1301 1301 1122 1208
80 3.500 0.300 1844 1844 1844 1590 1712
160 3.500 0.438 2787 2787 2787 2403 2587
5″ 40 5.563 0.258 965 965 965 832 896
80 5.563 0.375 1428 1428 1428 1231 1325
160 5.563 0.625 2474 2474 2474 2133 2296
8″ 40 8.625 0.322 771 771 771 665 716
80 8.625 0.500 1218 1218 1218 1050 1131
160 8.625 0.906 2298 2298 2298 1982 2133
2″ 40 2.375 0.154 1371 1371 1371 1182 1272
80 2.375 0.218 1985 1985 1985 1712 1843
160 2.375 0.344 3283 3283 3283 2831 3047
4″ 40 4.500 0.237 1102 1102 1102 950 1023
80 4.500 0.337 1596 1596 1596 1377 1482
160 4.500 0.531 2611 2611 2611 2552 2424
10″ 40 10.750 0.365 699 699 699 603 649
80 10.750 0.594 1159 1159 1159 999 1075
160 10.750 1.125 2289 2289 2289 1974 2124

To Check The Price List for Inconel 625 Forged Fittings Click Here

ASME SB 564 UNS N06625 Threaded Fitting Dimension Chart

Check Inconel 625 Forged Fittings Manufacturer in India providing various Dimensions

Nominal Pipe Size’s (Inches) Socket Bore Socket wall thickness Bore diameter Depth Socket Body wall thickness Center to bottom of socket A
B C D J G 45°
1/2″ 21.95
21.70		 4.65
4.10		 16.6
15		 10 3.75 11.5
3/4″ 27.30
27.05		 4.90
4.25		 21.7
20.2		 13 3.90 12.5
1″ 34.05
33.80		 5.70
5.00		 27.4
25.9		 13 4.55 14
1¼” 42.80
42.55		 6.05
5.30		 35.8
34.3		 13 4.85 17
1½” 48.90
48.65		 6.35
5.55		 41.7
40.1		 13 5.10 21
2″ 61.35
61.10		 6.95
6.05		 53.5
51.7		 16 5.55 25
2½” 74.20
73.80		 8.75
7.65		 64.2
61.2		 16 7.00 29
3″ 90.15
89.80		 9.50
8.30		 79.5
46.4		 16 7.60 31.5
4″ 115.80
115.45		 10.70
9.35		 103.8
100.7		 19 8.55 41.5
On What Basis Did Inconel 625 Forged Fittings are Preferred Mostly for Higher Temperature Environments?

On What Basis Did Inconel 625 Forged Fittings are Preferred Mostly for Higher Temperature Environments?

Nickel 625 Socket Weld Cap Schedule Chart
Size Sch 10S Sch 40S Sch 80S
Elbow 45 Deg B16.9 Equal Tee Elbow 90 Deg Elbow 45 Deg B16.9 Equal Tee Elbow 90 Deg Elbow 45 Deg B16.9 Equal Tee Elbow 90 Deg
300 13.62 39.46 25.80 29.71 62.14 59.42 39.69 83.91 79.38
40 0.17 0.68 0.30 0.23 0.86 0.40 0.29 1.02 0.51
200 5.33 15.65 10.20 10.77 20.91 21.54 16.56 28.12 33.11
90 0.75 2.67 1.70 1.42 4.08 2.83 2 5.44 4
50 0.25 0.85 0.50 0.4 1.28 0.70 0.59 1.59 0.91
30 0.11 0.49 0.23 0.17 0.59 0.26 0.23 0.68 0.40
100 1.08 3.46 2.10 2.09 5.27 4.47 2.81 7.71 6.18
20 0.03 0.13 0.07 0.04 0.17 0.08 0.05 0.20 0.11
80 0.63 1.77 1.25 1.08 3.31 2.20 1.50 4.45 2.97
10 0.02 0.05 0.03 0.02 0.03 0.03 0.04 0.09 0.06
Popular Types of ASTM B564 of Socket Weld Pipe Fittings

Inconel 625 Forged Fittings Supplier in India, Offer’s an Variety of Most Popular Types.

Inconel 625 Socket Weld Elbow

Inconel 625 Socket Weld Elbow

ASTM B564 Inconel 625 Socket Weld Tee

ASTM B564 Inconel 625 Socket Weld Tee

Alloy 625 Socket Weld Cross

Alloy 625 Socket Weld Cross

UNS N06625 Socket Weld Coupling

UNS N06625 Socket Weld Coupling

Nickel 625 Socket Weld Cap

Nickel 625 Socket Weld Cap

ASTM B564 UNS N06625 Socket Weld Plug

ASTM B564 UNS N06625 Socket Weld Plug

625 Inconel Socket Weld Bushing

625 Inconel Socket Weld Bushing

ASTM B564 Nickel 625 Weld Hex Nipple

ASTM B564 Nickel 625 Weld Hex Nipple

Inconel Alloy Din 2.4856 Socket Weld Boss

Inconel Alloy Din 2.4856 Socket Weld Boss

ASTM B564 N06625 Socket Weld Union

ASTM B564 N06625 Socket Weld Union

Most Common Types of Inconel 625 Forged Threaded Fittings
ASTM SB564 Inconel 625 Threaded Elbow

ASTM SB564 Inconel 625 Threaded Elbow

Inconel UNS N06625 Threaded Tee

Inconel UNS N06625 Threaded Tee

ASTM B366 UNS N06625 Threaded Cross

ASTM B366 UNS N06625 Threaded Cross

ASTM B366 Inconel 625 Threaded Coupling

ASTM B366 Inconel 625 Threaded Coupling

625 Inconel Alloy Threaded Cap

625 Inconel Alloy Threaded Cap

ASTM B564 625 Inconel Threaded Plug

ASTM B564 625 Inconel Threaded Plug

Inconel 625 Threaded Bushing

Inconel 625 Threaded Bushing

ASTM B564 Inconel 625 Threaded Hex Nipple

ASTM B564 Inconel 625 Threaded Hex Nipple

Alloy 625 Threaded Boss

Alloy 625 Threaded Boss

UNS N06625 Threaded Union

UNS N06625 Threaded Union

Refer to the Nickel 625 Threaded fittings Chemical Composition and Mechanical Properties
Chemical Composition of Alloy 625 Forged Fitting

C

Carbon

0.10%

Si

Silicon

0.50%

S

Sulfur

0.015%

Mn

Manganese

0.50%

Mechanical Strength Table of Inconel Alloy 625 Socket Weld Fitting
Element Density Yield Strength (0.2%Offset) Tensile Strength Melting Point Elongation
Inconel 625 8.4 g/cm3 MPa – 517, Psi – 75,000 MPa – 930, Psi – 1,35,000 2460°F (1350°C) 42.5%
Check UNS N06625 SW Pipe Fittings Weight Chart, HSN Code and Tolerance Chart
ASTM SB564 Inconel 625 Threaded Elbow Weight Chart

Explore Inconel 625 Forged Fittings Stockist in India who offers Accurate Weights

Nominal PIpe Size’s Weight In Kg B A Qty
¼ 0.20 0.88 0.81 160
1 ¼ 1.68 2.19 1.75 25
½ 0.57 1.31 1.12 100
1 1.08 1.81 1.5 40
1 ½ 2.38 2.44 2.00 18
2 ½ 6.22 3.62 3.00 4
¾ 0.71 1.5 1.31 75
3 10.36 4.31 3.38 2
2 3.55 2.97 2.38 10
4 23.91 5.75 4.19 1
Tolerance Chart for Alloy 625 Forged Cross
Dimension Tolerance Nominal Size Range (Inches)
Socket Depth ±0.06
End – End ±0.06
Flatness ±0.03
Outside Diameter +0.06 / -0.06
Socket Bore Diameter +0.03 / -0.03
Center—End (Elbows and Tees) ±0.12 1/8″ – 4″
Wall Thickness ±12.5%
Squareness of Ends ±0.03
B564 UNS N06625 Forged Tee HSN Code
Product HSN Code
Inconel 625 Forged Fittings 730729
Weekly Delivery Of 625 Inconel Socket Weld Bushing in Below countries
Export to Shipping Time in Days Continent Port
Nigeria
Nigeria		 Africa 30 Lagos Port Complex
Argentina
Argentina		 South America 45 The Port of Buenos Aires
Monthly Delivery Of ASTM B564 N06625 Socket Weld Union in Below countries
Export to Shipping Time in Days Continent Port
Peru
Peru		 South America 45 Puerto Chancay
Algeria
Algeria		 Africa 45 Port of Algiers
Bahrain
Bahrain		 Asia 9 Khalifa Bin Salman Port
Heat Treatment for ASTM B564 UNS N06625 Forged Plug
Heat Treatment Process Temperature
Annealing 1900°F – 2150°F
Stress Relieving 1100°F – 1300°F
Age Hardening 1300°F – 1400°F
Solution Treatment 1177°C 1900°F – 2150°F
Which Are The Pressure Ratings Classes That are Available of UNS N06625 Forged Fittings ?
Class’s Pressure Rating Temperature Range
Bar Psi °C °F
Class 150 19.6 285 -29 – 38 -20 – 100
Class 600 102.0 1480
Class 1500 255.5 3705
Class 300 51.0 740
Class 900 153.1 2220
Class 2500 425.4 6170
ASTM B366 Inconel 625 Threaded Coupling Temperature Range
Grade Temperature Range
Inconel 625 Forged Fittings 2350°F – 2460°F (1290°C – 1350°C)
Nickel Alloy 625 Forged Fittings Physical Properties

Discover Inconel 625 Forged Fittings Stockist in India offering Excellent Properties

Properties Unit Value’s
Density g/cm³ 8.44
Thermal Conductivity W/m·K 9.8
Electrical Resistivity µΩ·m 1.30
Poisson’s Ratio Unitless 0.31
Specific Heat Capacity J/kg·K 427
Melting Point °C 1290 – 1350
Elastic Modulus GPa 205
Coefficient of Thermal Expansion µm/m·K 12.8
Werkstoff nr 2.4856 Forged Union Hardness in Rockwell Brinell
Grade Hardness Range
Brinell Rockwell (B)
Inconel 625 201 MPa 70
Inconel 625 Forged Fittings Key Properties
  • Heat Treatment
  • Pickling
  • Corrosion resistance against sulfuric acid
  • Stress Corrosion Cracking Resistance
  • Pitting and Crevice Corrosion Resistance
  • High Temperature Strength
  • Machinability
  • Weldability
  • Application
  • Intergranular Corrosion Resistance
  • Workability
Heat Capacity for Alloy 625 Forged Cross
Grade Heat Capacity
Inconel 625 Forged Fittings 0.500 J/g-°C
Equivalent of Inconel UNS N06625 Forged Threaded Fitting

Inconel 625 Forged Fittings Supplier in India, Offers Forged Fittings With equivalent Material Grades.

Standard UNS Werkstoff Nr. GOST BS JIS EN AFNOR
Inconel 625 N06625 2.4856 XH75MБTЮ NA 21 NCF 625 NiCr22Mo9Nb NC22DNB4M
Registered Office: 23, Dhumal House, 1st Floor, Room No.4, 1st Carpenter Street, Mumbai, India
Factory: N-3 Patalganga MIDC, Kasap, Taluka- Panvel, Dist- Raigad, Maharashtra 410206
Phone No.: +91 22 66103554 | Email: info@dineshindustries.com
DMCA.com Protection Status


Exporter and Distributor of Corrosion Resistant Seamless Steel Pipe Fittings Supply With NACE MR0175, Offer Reseller Price to Traders, Stockists, and Wholesalers in Houston , Texas , Mexico , USA , Italy , Europe , South Africa , Nigeria , Singapore Etc

Copyright © 2021 Dinesh Industries | All Right Reserved. Design and SEO By Mesotek
